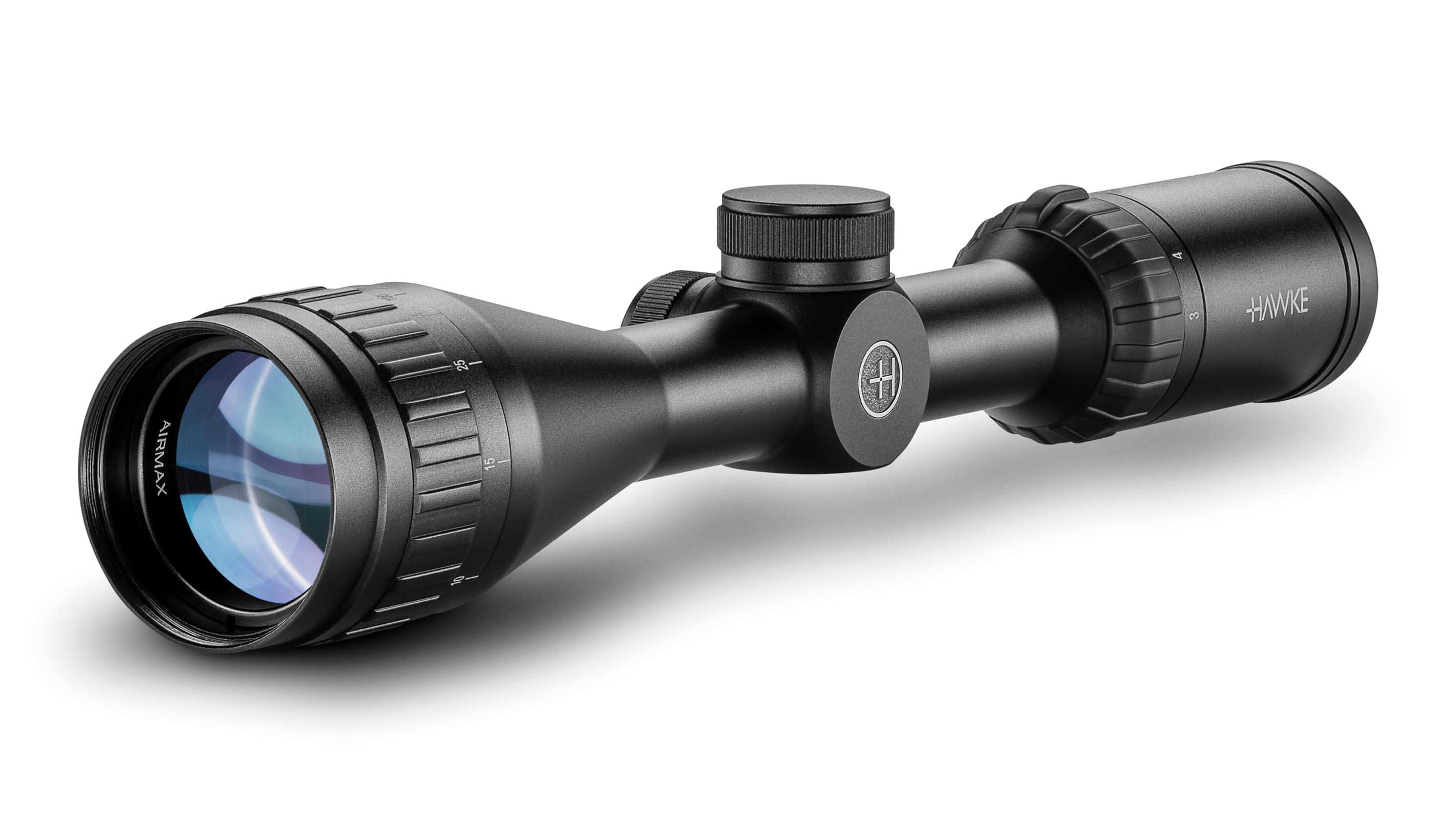

Specialist scopes designed by airgunners for airgunners!
Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.
- Capped Low-Profile Turrets
- 1 Inch Mono-tube chassis
- Wide Angle
- 16 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
- AMX reticle designed for airguns
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke No-Fault Lifetime Warranty.
Product Type
Riflescope
Product Range
Airmax WA
Objective Lens
40mm
Reticle
AMX
Parallax
Adjustable Objective
Magnification
3 - 9x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
1 Inch
Illumination
N/A
Field of View (ft@100yds)
37.2 - 13.6
Field of View (m@100m)
12.4 - 4.5
Field of View (°)
7.1 - 2.6
Eye Relief (in)
3.5
Eye Relief (mm)
90
PX/Focus (yds)
10 - ∞
PX/Focus (m)
9 - ∞
Exit Pupil (mm)
13.3 - 4.4
Exit Pupil (in)
0.52 - 0.17
Turret Type
Capped
Turret Caps
YES
Click Value
1/4 MOA
Elevation Turret Clicks (max)
80 MOA
Windage Turret Clicks (max)
80 MOA
Ocular Type
Fast Focus
Power Selector
Rubber Coated Posi-Grip
Lens Coating
Fully Multi-Coated - 16 Layers
Length (in)
12.2
Length (mm)
310
Weight (oz)
18.3
Weight (g)
519
