All models feature Hawke’s new H7 optics with high zoom ratio, supreme clarity and light transmission.
Supreme accuracy for rifle shooting, driven and hunting applications.
- Patented Exposed Zero Lock ‘n’ Stop elevation turret
- First Focal Plane (FFP)
- 30mm Mono-tube chassis
- Side Focus
- Illumination
- Wide Angle FOV
- High volume eyebox
- 100mm eye relief
- Multi-LED high intensity reticle
- High grade, low dispersion Crown glass
- 21 layer Fully Multi-Coated lenses
- Zoom magnification throw lever (removable)
- Fast focus eyebell with lock ring
- Supplied with Professional metal flip-up covers.
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke No-Fault Lifetime Warranty.

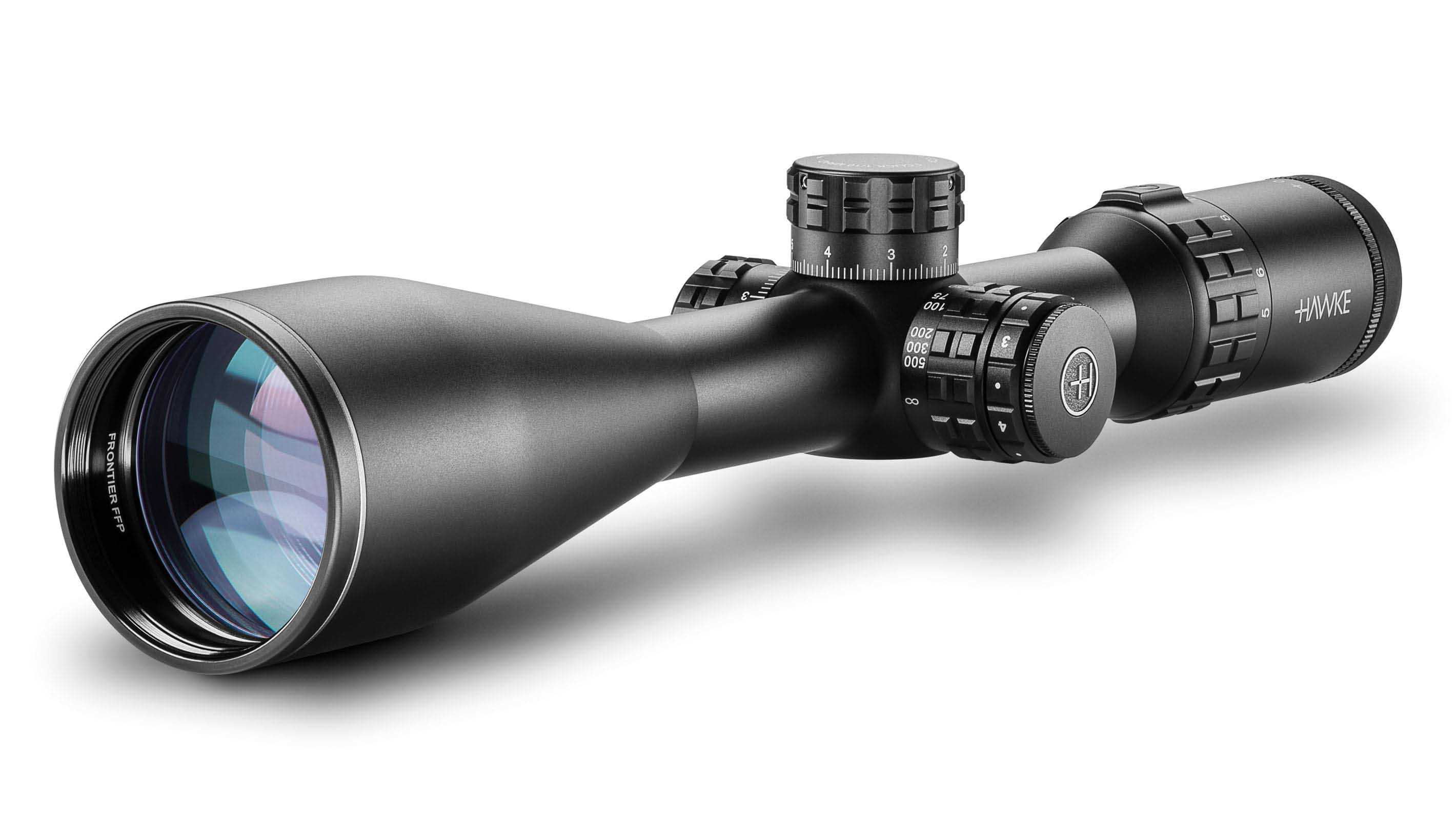

Product Type
Riflescope
Product Range
Frontier 30 FFP
Objective Lens
56mm
Reticle
FFP Mil Pro (25x)
Parallax
Side Focus
Magnification
5 - 25x
Optical System
System H7
Focal Plane
FFP (First Focal Plane)
Scope Tube
30mm
Illumination
6 Levels with Off Positions In-between - Red
Field of View (ft@100yds)
22.5 - 4.5
Field of View (m@100m)
7.5 - 1.5
Field of View (°)
4.3 - 0.9
Eye Relief (in)
4
Eye Relief (mm)
102
PX/Focus (yds)
15 - ∞
PX/Focus (m)
14 - ∞
Exit Pupil (mm)
11.2 - 2.2
Exit Pupil (in)
0.44 - 0.09
Turret Type
Zero Lock 'n' Stop
Turret Caps
N/A
Click Value
1/10 MRAD
Elevation Turret Clicks (max)
19 MRAD
Windage Turret Clicks (max)
19 MRAD
Ocular Type
Locking Fast Focus
Power Selector
Knurled Posi-Grip with Removable Zoom Lever
Lens Coating
Fully Multi-Coated - 21 Layers
Length (in)
14.4
Length (mm)
365
Weight (oz)
24.6
Weight (g)
698
