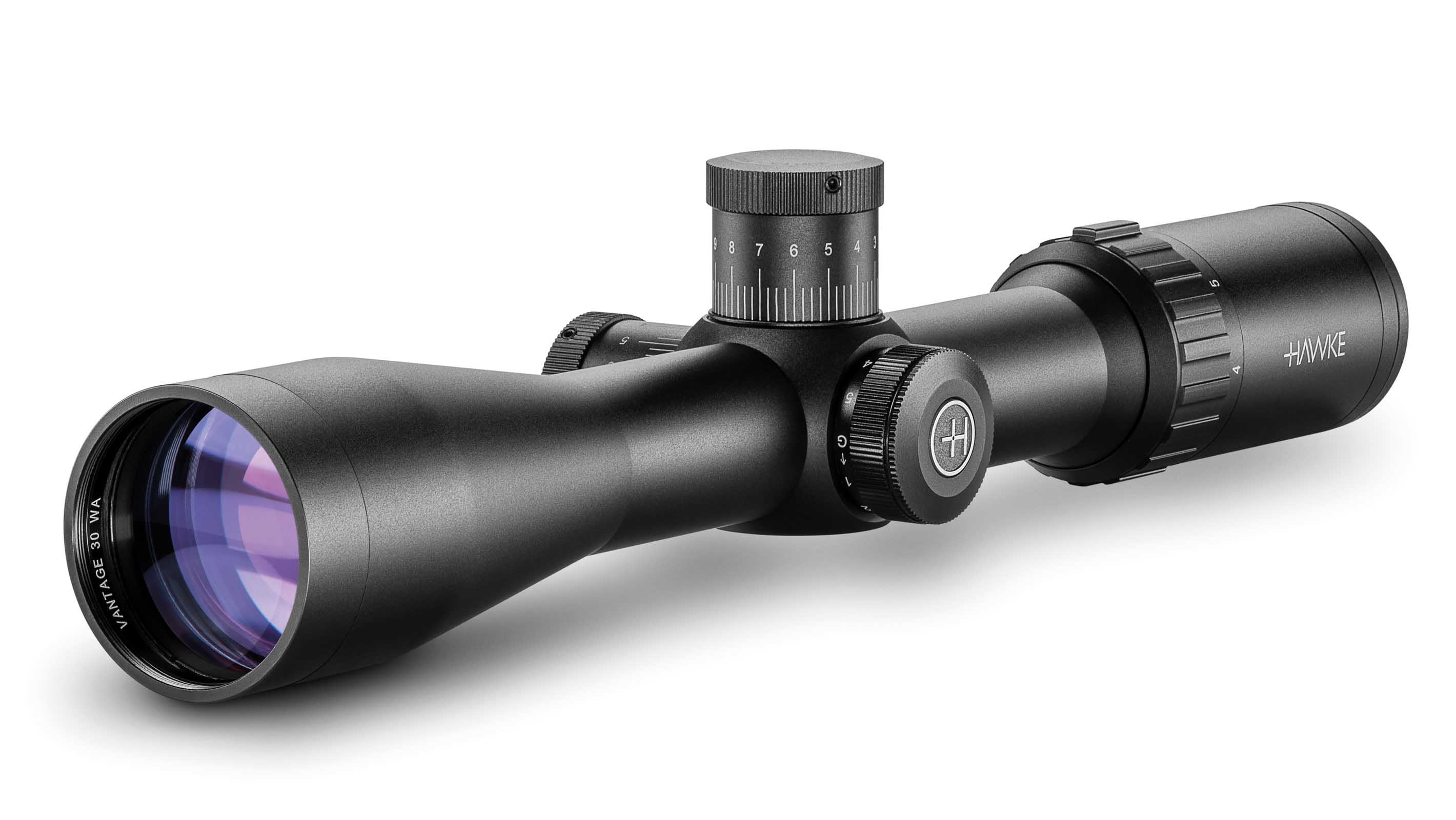

An extensive range of scopes to suit all calibres and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
IR models feature precision glass etched reticles with multi-stage illumination in both red and green.
- Exposed Locking Turrets
- 30mm Mono-tube chassis
- Wide Angle
- Illumination
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke No-Fault Lifetime Warranty.
Product Type
Riflescope
Product Range
Vantage 30 WA IR
Objective Lens
42mm
Reticle
.223/.308 Marksman (12x)
Parallax
Fixed
Magnification
4 - 12x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
5 Levels - Red/Green
Field of View (ft@100yds)
38.9 - 9.8
Field of View (m@100m)
13 - 3.3
Field of View (°)
7.4 - 1.9
Eye Relief (in)
3.5
Eye Relief (mm)
90
PX/Focus (yds)
100
PX/Focus (m)
91
Exit Pupil (mm)
10.5 - 3.5
Exit Pupil (in)
0.41 - 0.14
Turret Type
Exposed
Turret Caps
N/A
Click Value
1/4 MOA
Elevation Turret Clicks (max)
130 MOA
Windage Turret Clicks (max)
130 MOA
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated - 11 Layers
Length (in)
13
Length (mm)
329
Weight (oz)
19.9
Weight (g)
565
