We didn't invent crossbow scopes... We perfected them.
Scopes designed to withstand the rigours of crossbows with reticle systems guaranteed to make you a better shot!
- Capped Low-Profile Turrets
- 30mm Mono-tube chassis
- Illumination
- 1⁄2 MOA low-profile fingertip turrets
- Fixed parallax at 45 metres
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
- Suitable speeds 280fps - 440fps
Nitrogen purged. Shockproof. Waterproof. Fog proof.
Hawke No-Fault Lifetime Warranty.

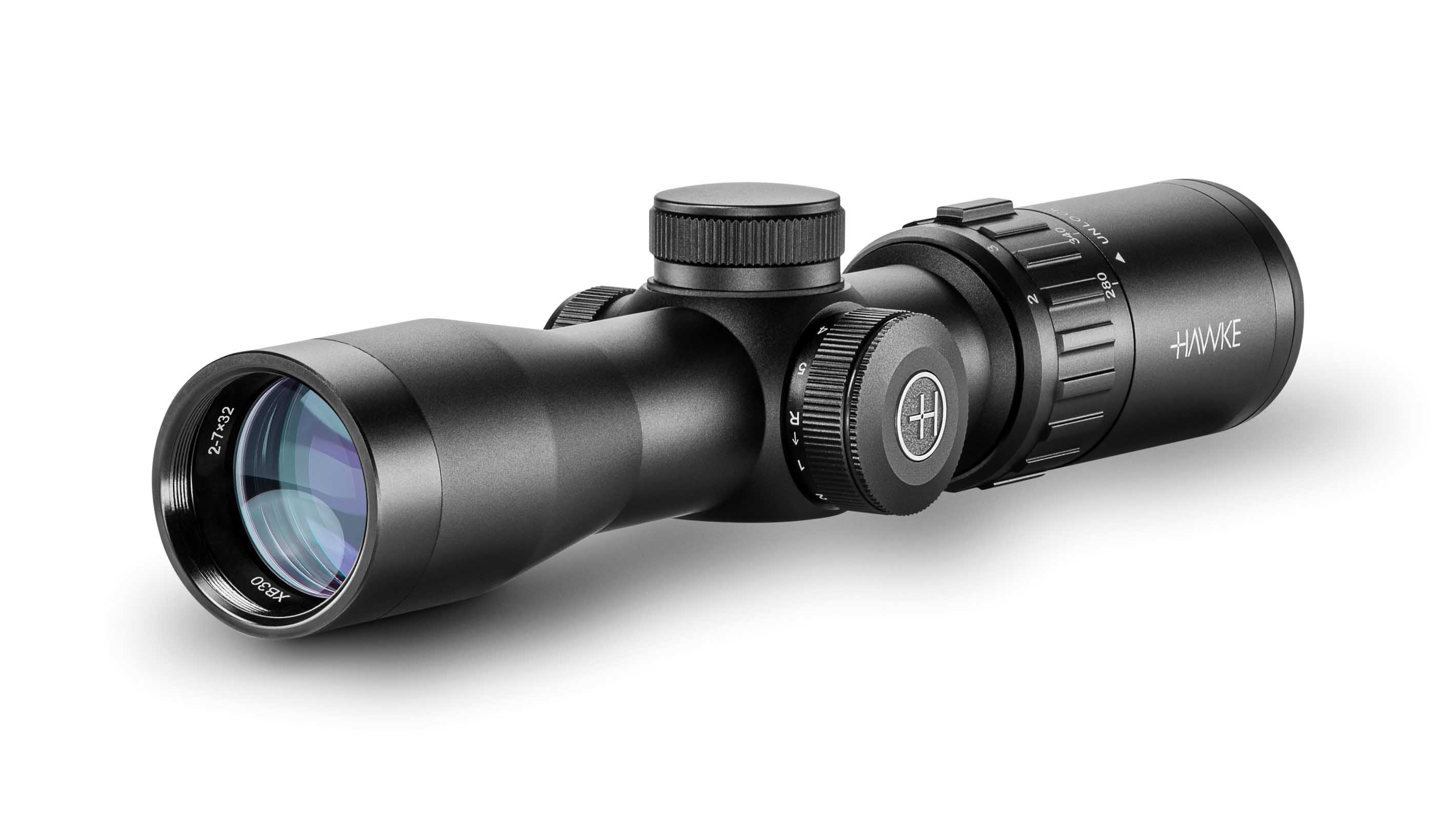

Product Type
Crossbow Scope
Product Range
XB30
Objective Lens
32mm
Reticle
XB30 SR
Parallax
Fixed
Magnification
2 - 7x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
5 Levels - Red/Green
Field of View (ft@100yds)
53.8 - 17.4
Field of View (m@100m)
17.9 - 5.8
Field of View (°)
10.2 - 3.3
Eye Relief (in)
4
Eye Relief (mm)
102
PX/Focus (yds)
50
PX/Focus (m)
46
Exit Pupil (mm)
16 - 4.6
Exit Pupil (in)
0.63 - 0.18
Turret Type
Capped
Turret Caps
YES
Click Value
1/2 MOA
Elevation Turret Clicks (max)
215 MOA
Windage Turret Clicks (max)
195 MOA
Ocular Type
Fast Focus
Power Selector
Locking Speed Adjuster
Lens Coating
Fully Multi-Coated
Calibration (Speed)
280fps - 440fps
Length (in)
9.4
Length (mm)
239
Weight (oz)
14.4
Weight (g)
407
