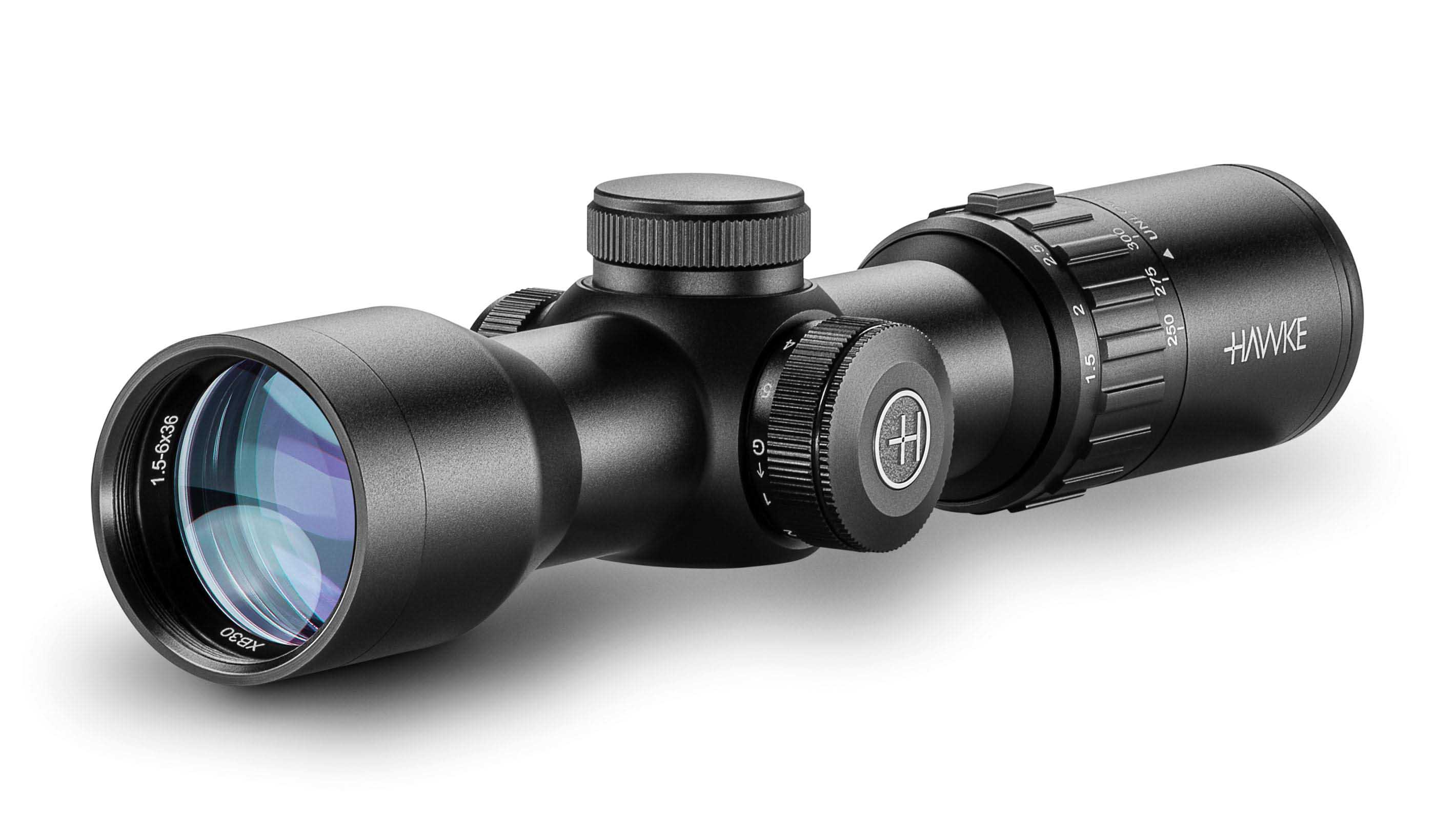

We didn't invent crossbow scopes... We perfected them.
Scopes designed to withstand the rigours of crossbows with reticle systems guaranteed to make you a better shot!
XB30 Compacts feature a Wide Angle optical system designed to give users the maximum view possible, a locking speed adjuster ring (patent pending) ensures the FPS setting is not changed once zeroed. XB30 Compacts feature a multi-line reticle with aim points out to 100 yards incorporating windage bars.
- Capped Low-Profile Turrets
- 30mm Mono-tube chassis
- Wide Angle
- Patented locking speed adjuster ring
- Illumination
- 1⁄2 MOA low-profile fingertip turrets
- Fixed parallax at 46 metres
- 14 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
- Suitable speeds 250fps - 450fps
Nitrogen purged. Shockproof. Waterproof. Fog proof.
Hawke No-Fault Lifetime Warranty.
Product Type
Crossbow Scope
Product Range
XB30 Compact
Objective Lens
36mm
Reticle
XB30 Compact SR
Parallax
Fixed
Magnification
1.5 - 6x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
5 Levels - Red/Green
Field of View (ft@100yds)
87.9 - 21.9
Field of View (m@100m)
29.3 - 7.3
Field of View (°)
16.7 - 4.2
Eye Relief (in)
3
Eye Relief (mm)
76
PX/Focus (yds)
50
PX/Focus (m)
46
Exit Pupil (mm)
24 - 6
Exit Pupil (in)
0.94 - 0.24
Turret Type
Capped
Turret Caps
YES
Click Value
1/2 MOA
Elevation Turret Clicks (max)
180 MOA
Windage Turret Clicks (max)
180 MOA
Ocular Type
Fast Focus
Power Selector
Locking Speed Adjuster
Lens Coating
Fully Multi-Coated
Length (in)
9.3
Length (mm)
236
Weight (oz)
15.1
Weight (g)
429
