BUY NOW
$209

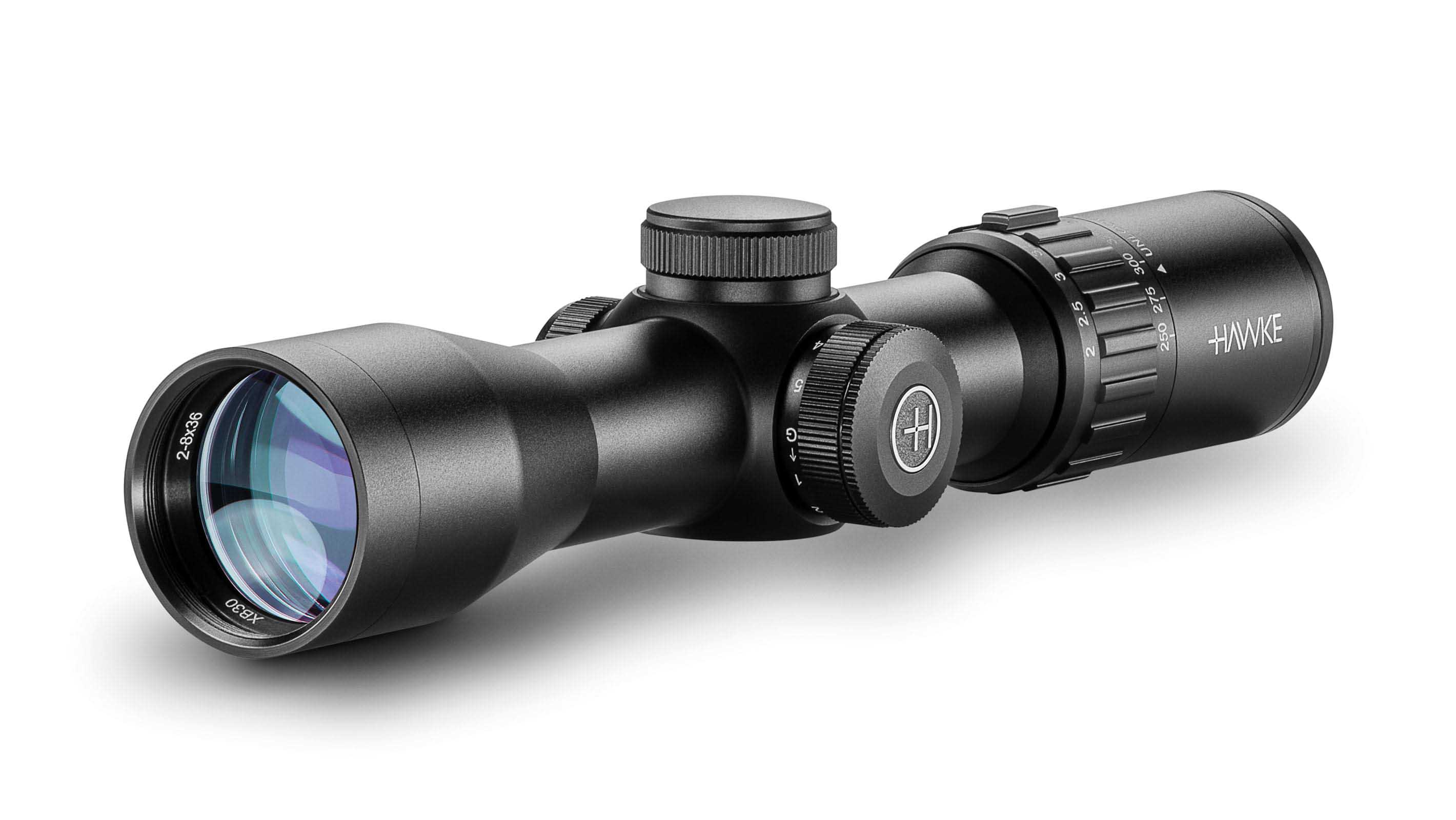

XB30 Compact 2-8x36
SR Reticle  Calibrated for 250fps - 475fps

Model:
12 227
Barcode:
5054492122271
$209
BUY NOW

We didn't invent crossbow scopes... We perfected them.

Scopes designed to withstand the rigours of crossbows with reticle systems guaranteed to make you a better shot!

XB30 Compacts feature a Wide Angle optical system designed to give users the maximum view possible, a locking speed adjuster ring (patent pending) ensures the FPS setting is not changed once zeroed. XB30 Compacts feature a multi-line reticle with aim points out to 100 yards incorporating windage bars.

  • Capped Low-Profile Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Patented locking speed adjuster ring
  • Illumination
  • 1⁄2 MOA low-profile fingertip turrets
  • Fixed parallax at 46 metres
  • 14 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • Suitable speeds 250fps - 475fps

Nitrogen purged. Shockproof. Waterproof. Fog proof.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing
Objective Lens
36mm
Reticle
XB30 Compact SR
Parallax
Fixed
Magnification
2 - 8x
Optical System
System H2
Scope Tube
30mm
Illumination
5 Levels - Red/Green
Field of View
65.7 - 16.4ft @100yds
21.9 - 5.5m @100m
Field of View (°)
12.5 - 3.1
Eye Relief
3in
76mm
PX/Focus
50yds
46m
Turret Caps
YES
Click Value
12 MOA
Elevation Turret Clicks (max)
180 MOA
Windage Turret Clicks (max)
180 MOA
Exit Pupil
0.71 - 0.18″
18 - 4.5mm
Ocular Type
Fast Focus
Power Selector
Locking Speed Adjuster
Lens Coating
Fully Multi-Coated
Focal Plane
SFP (Second Focal Plane)
Length
10.1in
256mm
Weight
15.3oz
435g
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Lens Cloth
  • Flip-Up Lens Covers
  • CR2032 Battery
